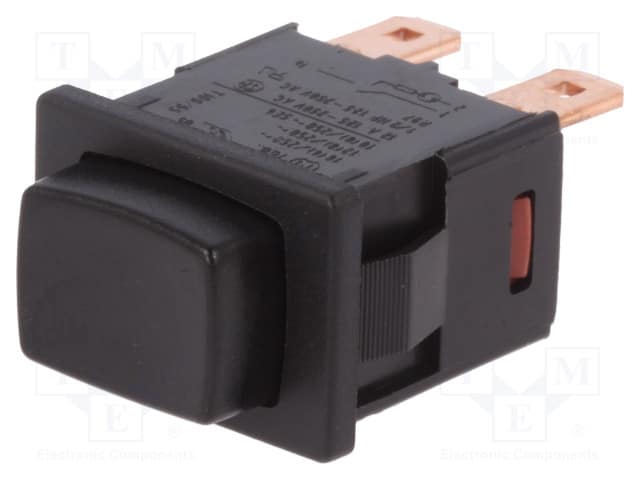

OFF-ON 16A push-button switch
€9,90
Out of stock
– Manufacturer: Marquardt
– Type of switch: push-button
– Number of positions: 2
– Contacts configuration : SPST-NO
– AC contacts rating @R
at resistive load: 16A / 250V AC
– Actuator colour: black
– Illumination: none
– Backlight colour: none
– Leads: 4,8×0,8mm connectors
– Switching method
item in brackets is instantaneous: OFF-ON
– Operating temperature: -20…100°C
– Mounting hole diameter: 19.8×12.9mm
– Body colour: black
– IP rating: IP40
– Max. contact resistance: 100mΩ
– Manufacturer series: 1683
– Body dimensions: 21x15x19.7mm
– Panel thickness: max. 3mm
– Contact plating: silver plated
– Shape: rectangular
– AC contacts rating @L
at inductive load: 4A / 250V AC
– Stable positions number: 1
Additional information
– Gross weight: 10 g
- Manufacturer: Marquardt
- Type of switch: push-button
- Number of positions: 2
- Contacts configuration : SPST-NO
- AC contacts rating @R
at resistive load: 16A / 250V AC
- Actuator colour: black
- Illumination: none
- Backlight colour: none
- Leads: 4,8x0,8mm connectors
- Switching method
item in brackets is instantaneous: OFF-ON
- Operating temperature: -20...100°C
- Mounting hole diameter: 19.8x12.9mm
- Body colour: black
- IP rating: IP40
- Max. contact resistance: 100mΩ
- Manufacturer series: 1683
- Body dimensions: 21x15x19.7mm
- Panel thickness: max. 3mm
- Contact plating: silver plated
- Shape: rectangular
- AC contacts rating @L
at inductive load: 4A / 250V AC
- Stable positions number: 1
Additional information
- Gross weight: 10 g
