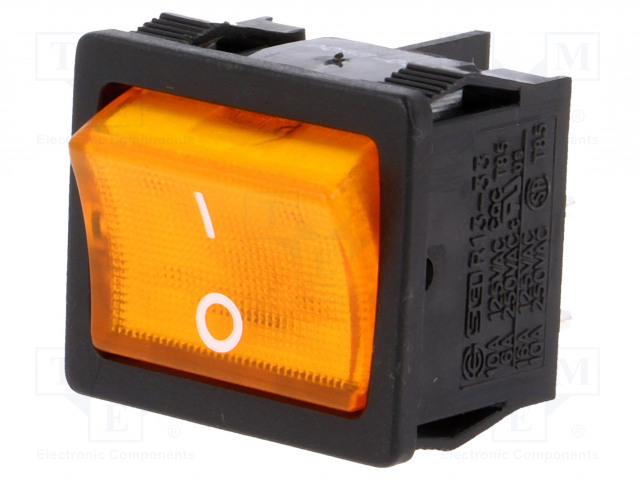

OFF-ON 6A/250VAC rocker switch orange
€3,50
Only 2 left in stock
– Manufacturer: SCI
– Type of switch: ROCKER
– Contacts configuration : DPST
– Number of positions: 2
– Switching method
item in brackets is instantaneous: OFF-ON
– AC contacts rating @R
at resistive load: 6A / 250V AC
– Key button colour: orange
– Illumination: neon lamp 250V
– Max. contact resistance: 50mΩ
– Body colour: black
– Body material: polyamide
– Flammability rating: UL94V-2
– Operating temperature: -20…85°C
– Leads: 4,8×0,8mm connectors
– Panel thickness: max. 3mm
– Electrical life: 6000 cycles
– Mounting hole diameter: 22×19.6mm
– Button marking: I-O
– Backlight colour: yellow
– Shape: rectangular
– Manufacturer series: R13-33-AC
– Stable positions number: 2
Additional information
– Gross weight: 7.13 g
