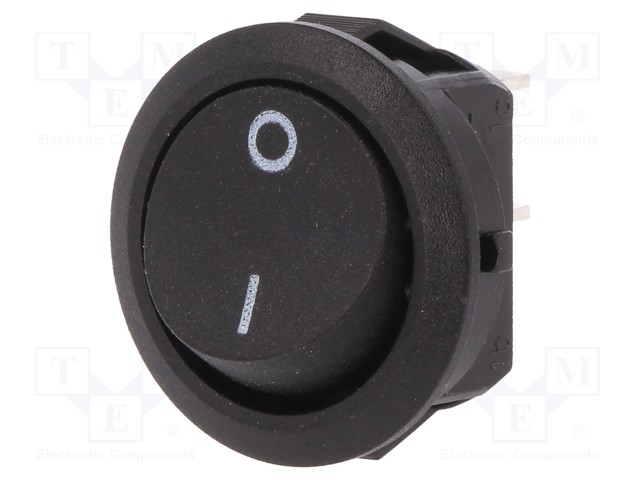

OFF-ON ROCKER SWITCH 12A/250VAC BLACK
€6,00
Out of stock
– Manufacturer: Marquardt
– Type of switch: ROCKER
– Contacts configuration : SPST
– Number of positions: 2
– Switching method OFF-ON
– AC contacts rating @R : 12A / 250V AC
– AC contacts rating @L: 4A / 250V AC
– Key button colour: black
– IP rating: IP40
– Illumination: none
– Max. contact resistance: 100mΩ
– Body colour: black
– Operating temperature: -20…85°C
– Leads: 4,8×0,8mm connectors
– Panel thickness: max. 3mm
– Mounting hole diameter: Ø21.8mm
– Button marking: O-I
– Shape: round
– Manufacturer series: 1881
– Button shape: round
– Dimensions: 23×11.7mm
– Contact plating: silver plated
– Stable positions number: 2
Additional information
– Gross weight: 3.315 g
