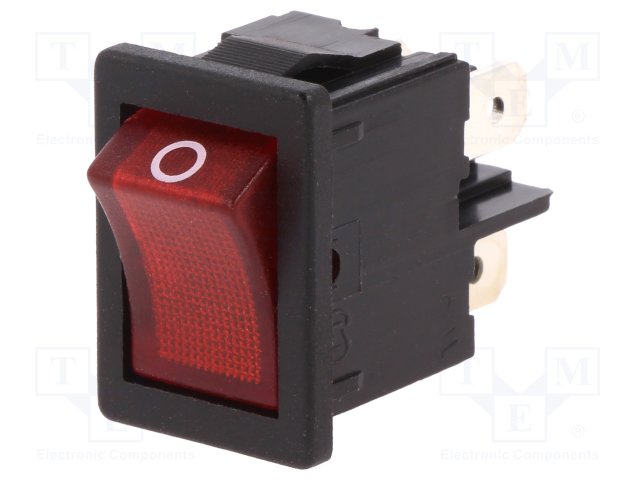

ON-OFF 4A Rocker switch red
€8,90
Out of stock
– Manufacturer: Marquardt
– Type of switch: ROCKER
– Contacts configuration: DPST
– Number of positions: 2
– Stable positions number: 2-position
– Switching method
item in brackets is instantaneous: OFF-ON
– AC contacts rating @R
at resistance load: 4A / 250V AC
– Key button colour: red
– IP rating: IP40
– Illumination: filament lamp 230V
– Max. contact resistance: 100mΩ
– Body colour: black
– Operating temperature: -20…85°C
– Leads: 4,8×0,8mm connectors
– Panel thickness: max. 3mm
– Mounting hole diameter: 19.8×12.9mm
– Button marking: O
– Backlight colour: red
– Shape: rectangular
– Related items: 203.007.013
– Manufacturer series: 1855
– Button shape: rectangular
– Dimensions: 21×21.5x15mm
– Contact material: silver
Additional information
– Gross weight: 4.5 g
- Manufacturer: Marquardt
- Type of switch: ROCKER
- Contacts configuration: DPST
- Number of positions: 2
- Stable positions number: 2-position
- Switching method
item in brackets is instantaneous: OFF-ON
- AC contacts rating @R
at resistance load: 4A / 250V AC
- Key button colour: red
- IP rating: IP40
- Illumination: filament lamp 230V
- Max. contact resistance: 100mΩ
- Body colour: black
- Operating temperature: -20...85°C
- Leads: 4,8x0,8mm connectors
- Panel thickness: max. 3mm
- Mounting hole diameter: 19.8x12.9mm
- Button marking: O
- Backlight colour: red
- Shape: rectangular
- Related items: 203.007.013
- Manufacturer series: 1855
- Button shape: rectangular
- Dimensions: 21x21.5x15mm
- Contact material: silver
Additional information
- Gross weight: 4.5 g
