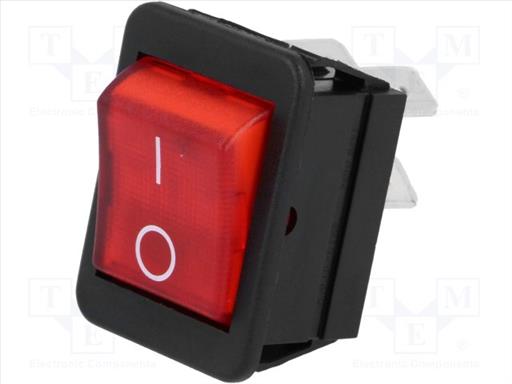

ON-OFF 6A/250VAC rocker switch
€5,40
Out of stock
– Manufacturer: Marquardt
– Type of switch: ROCKER
– Contacts configuration : SPST
– Number of positions: 2
– Switching method
item in brackets is instantaneous: ON-OFF
– AC contacts rating @R
at resistive load: 6A / 250V AC
– IP rating: IP40
– Max. contact resistance: 100mΩ
– Flammability rating: UL94V-2
– Operating temperature: -20…85°C
– Leads: 4,8×0,8mm connectors
– Terminals plating: silver plated
– Terminals material: copper
– Stable positions number: 1
Additional information
– Gross weight: 2.8 g
- Manufacturer: Marquardt
- Type of switch: ROCKER
- Contacts configuration : SPST
- Number of positions: 2
- Switching method
item in brackets is instantaneous: ON-OFF
- AC contacts rating @R
at resistive load: 6A / 250V AC
- IP rating: IP40
- Max. contact resistance: 100mΩ
- Flammability rating: UL94V-2
- Operating temperature: -20...85°C
- Leads: 4,8x0,8mm connectors
- Terminals plating: silver plated
- Terminals material: copper
- Stable positions number: 1
Additional information
- Gross weight: 2.8 g
