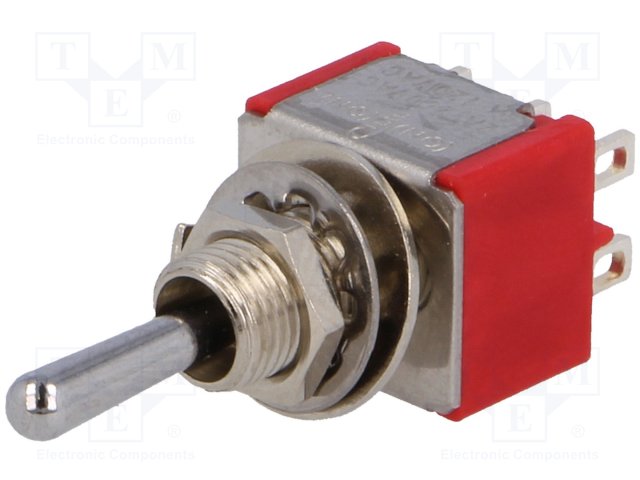

ON-OFF-ON 2A/250VAC TOGGLE SWITCH
€3,60
In stock
– Type of switch: toggle
– Number of positions: 3
– Stable positions number: 1-position
– Contacts configuration: DP3T
– Switching method:
item in brackets is instantaneous ON-OFF-ON
– AC contacts rating @R:
at resistance load 2A / 250VAC
– DC contacts rating @R:
at resistance load 5A / 28VDC
– Leads for: soldering
– Operating temperature: -35…80°C
– Kind of toggle: round
– Mounting hole diameter: Ø6.35mm
– Knob height: 10.41mm
– Body dimensions: 12.7 x 11.43 x 8.89mm
– Contact plating: silver plated
– Related items: ICE1
– Mechanical durability: 40000cycles
Additional information
– Gross weight: 5.89 g
