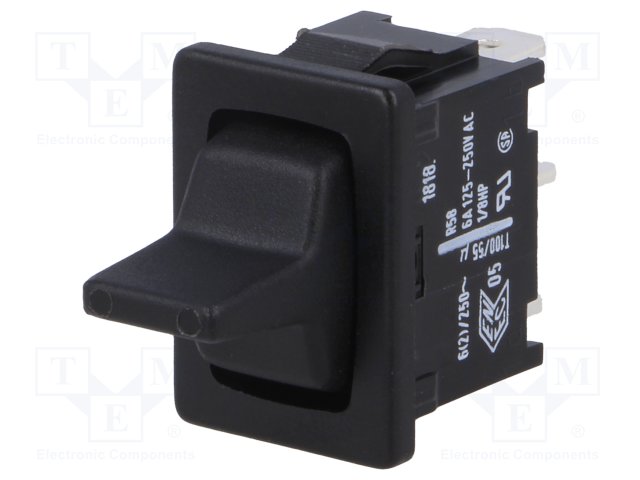

ON-OFF-ON 6A/250VAC TOGGLE SWITCH
€6,60
Out of stock
Switch: toggle Positions:3 SP3T ON-OFF-ON 6A/250VAC -20÷100°C
-Manufacturer Marquardt
-Type of switch toggle
-Number of positions 3
-Stable positions number 3-position
-Contacts configuration SP3T
-Switching method
item in brackets is instantaneous ON-OFF-ON
-AC contacts rating @R
at resistance load 6A / 250VAC
-Leads 4,8×0,8mm connectors
-Operating temperature -20…100°C
-Kind of toggle flat
-Mounting hole diameter 19.8 x 12.9mm
-Knob height 14mm
-Max. contact resistance: 100mΩ
-Body dimensions 21 x 15 x 13.2mm
-Actuator material polyamide
-Contact plating silver plated
-Min. insulation resistance 100MΩ
-Manufacturer series 1818
-Panel thickness max 3mm
-Mechanical durability 10000cycles
-Body colour black
Additional information
-Gross weight: 4.2 g
Switch: toggle Positions:3 SP3T ON-OFF-ON 6A/250VAC -20÷100°C
-Manufacturer Marquardt
-Type of switch toggle
-Number of positions 3
-Stable positions number 3-position
-Contacts configuration SP3T
-Switching method
item in brackets is instantaneous ON-OFF-ON
-AC contacts rating @R
at resistance load 6A / 250VAC
-Leads 4,8x0,8mm connectors
-Operating temperature -20...100°C
-Kind of toggle flat
-Mounting hole diameter 19.8 x 12.9mm
-Knob height 14mm
-Max. contact resistance: 100mΩ
-Body dimensions 21 x 15 x 13.2mm
-Actuator material polyamide
-Contact plating silver plated
-Min. insulation resistance 100MΩ
-Manufacturer series 1818
-Panel thickness max 3mm
-Mechanical durability 10000cycles
-Body colour black
Additional information
-Gross weight: 4.2 g
