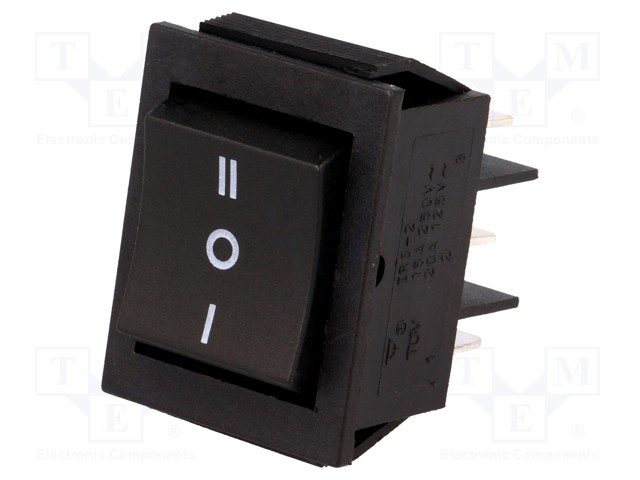

ON-OFF-ON ROCKER SWITCH 15A/250VAC BLACK
€3,00
In stock
– Type of switch: ROCKER
– Contacts configuration: DP3T
– Number of positions: 3
– Switching method: ON-OFF-ON
– AC contacts rating @R: 15A / 250V AC
– Key button colour: black
– Illumination: none
– Max. contact resistance: 35mΩ
– Body colour: black
– Operating temperature: -30…80°C
– Leads: 6,3×0,8mm connectors
– Electrical life: 10000 cycles
– Mounting hole diameter: 31×22.3mm
– Button marking: I-O-II
– Related items: RSC09
– Button shape: rectangular
– Height above panel: 9.4mm
– Stable positions number: 3
Additional information
– Gross weight: 15.1 g
- Type of switch: ROCKER
- Contacts configuration: DP3T
- Number of positions: 3
- Switching method: ON-OFF-ON
- AC contacts rating @R: 15A / 250V AC
- Key button colour: black
- Illumination: none
- Max. contact resistance: 35mΩ
- Body colour: black
- Operating temperature: -30...80°C
- Leads: 6,3x0,8mm connectors
- Electrical life: 10000 cycles
- Mounting hole diameter: 31x22.3mm
- Button marking: I-O-II
- Related items: RSC09
- Button shape: rectangular
- Height above panel: 9.4mm
- Stable positions number: 3
Additional information
- Gross weight: 15.1 g
