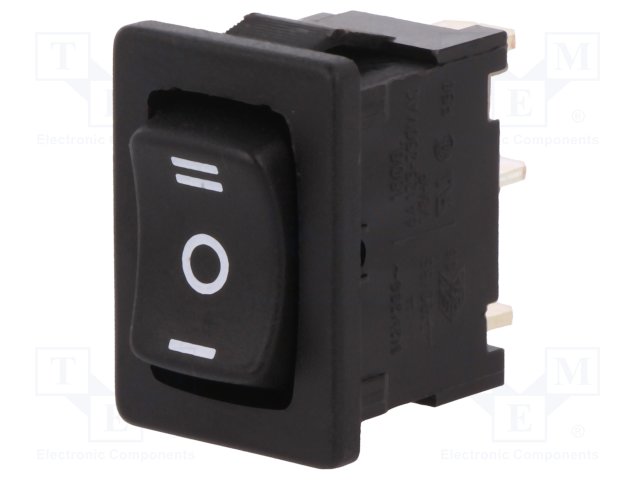

ON-OFF-ON rocker switch 6A 250VAC
€5,25
Out of stock
– Manufacturer: Marquardt
– Type of switch: ROCKER
– Contacts configuration: SP3T
– Number of positions: 3
– Stable positions number: 3-position
– Switching method
item in brackets is instantaneous: ON-OFF-ON
– AC contacts rating @R
at resistance load: 6A / 250VAC
– Key button colour: black
– IP rating: IP40
– Illumination: none
– Max. contact resistance: 100mΩ
– Body colour: black
– Operating temperature: -20…100°C
– Leads: 4,8×0,8mm connectors
– Panel thickness: max 3mm
– Mounting hole diameter: 19.8×12.9mm
– Button marking: II-O-I
– Backlight colour: none
– Shape: rectangular
– Related items: 203.007.013, 203.089.011
– Manufacturer series: 1808
– Button shape: rectangular
– Dimensions: 21x15x13.3mm
– Contact material: copper
Additional information
– Gross weight: 3.8 g
