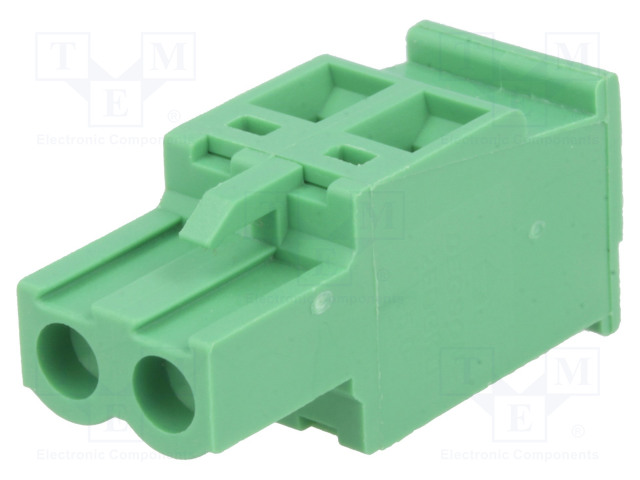

PLUGGABLE TERMINAL BLOCK 5MM 2WAY X2pcs
€2,60
In stock
– Manufacturer: DEGSON ELECTRONICS
– Type of connector: pluggable terminal block
– Contacts pitch: 5mm
– Number of ways: 2
– Spatial orientation: angled
– Connector: plug
– Kind of connector: female
– Mechanical mounting: for cable
– Electrical mounting: screw terminal, cage clamp
– Colour: green
– Rated voltage: 320V
– Current rating: 10A
– Type of pin configuration: 1×2
– Body material: PA66
– Locking system: latch
– Flammability rating: UL94V-0
– Conform to the norm: CE, UL, VDE
– Operating temperature: -40…105°C
– Contact material: phosphor bronze
– Number of terminals: 2
– Wire size: 28AWG…12AWG
-Wire cross section: 2.5mm2
Additional information
– Gross weight: 3.533 g
