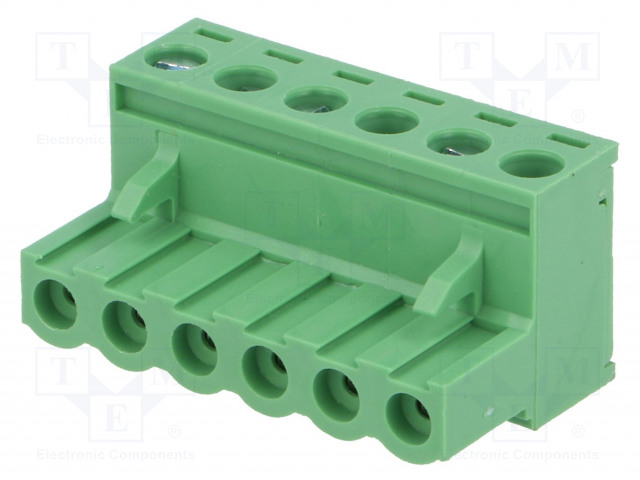

Pluggable terminal block 6ways 5mm straight plug fem.
€1,25
Out of stock
– Manufacturer: DEGSON ELECTRONICS
– Type of connector: pluggable terminal block
– Contacts pitch: 5mm
– Number of ways: 6
– Spatial orientation: straight
– Connector: plug
– Kind of connector: female
– Mechanical mounting: for cable
– Electrical mounting screw terminal, cage clamp
– Colour: green
– Rated voltage: 320V
– Current rating: 20A
– Type of pin configuration: 1×6
– Body material: PA66
– Locking system: latch
– Flammability rating: UL94V-0
– Conform to the norm: CE, UL, VDE
– Operating temperature: -40…105°C
– Contact material: phosphor bronze
– Number of terminals: 6
– Wire size: 28AWG…12AWG
– Wire cross section: 2.5mm2
Additional information
– Gross weight: 8.855 g
