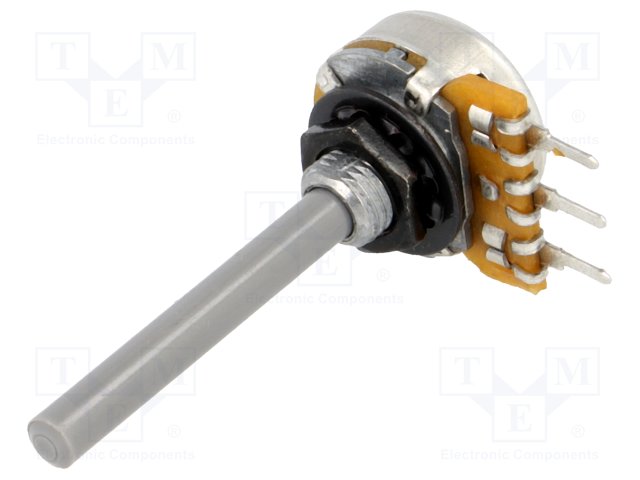

POTENTIOMETER 4.7K LINEAR

Potentiometer shaft single turn 4.7kΩ 0.25W ±20 4mm linear

– Manufacturer OMEG
– Type of potentiometer shaft
– Kind of potentiometer single turn
– Resistance 4.7kΩ
– Power 0.25W
– Tolerance ±20
– Shaft diameter 4mm
– Characteristics linear
– Mounting THT
– Body dimensions Ø16.5 x 9mm
– Track material plastic
– Shaft surface smooth
– Shaft length 29mm
– Thread length 6mm
– Mechanical rotation angle 270°
– L shaft length 35mm
– Terminal pitch 5.08mm
– Potentiometer features mono
– Max. operating voltage 350V DC

Additional information
– Gross weight: 5.8 g
