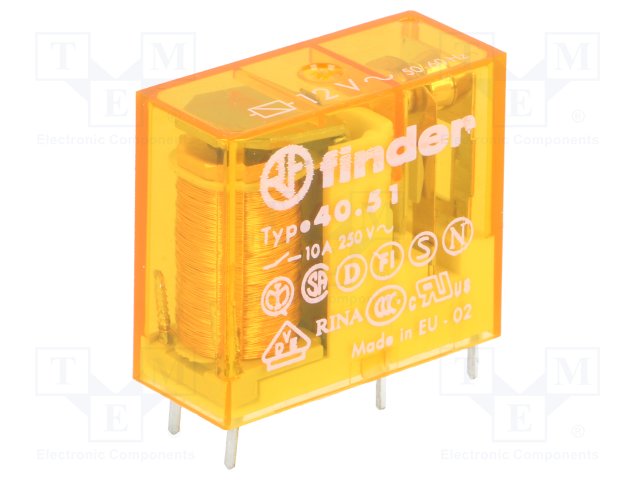

Relay 12VAC 8A/250VAC
€11,50
In stock
– Manufacturer: FINDER
– Type of relay: electromagnetic
– Contacts configuration: SPDT
– Rated coil voltage: 12V AC
– AC contacts rating @R
at resistance load: 8A / 250VAC
– DC contacts rating @R
at resistance load: 8A / 30VDC
– Contact current max.: 15A
– Switched voltage: max 220V DC, max 400V AC
– Relay variant: miniature
– Mounting: PCB, socket
– Coil resistance: 80Ω
– Body dimensions: 29 x 12.4 x 25mm
– Coil power consumption: 1.2VA
– Operating temperature: -40…70°C
– Relay series: 40.51
– Contact material: AgCdO
– Terminal pitch: 5mm
– Coil current: 90mA
Additional information
