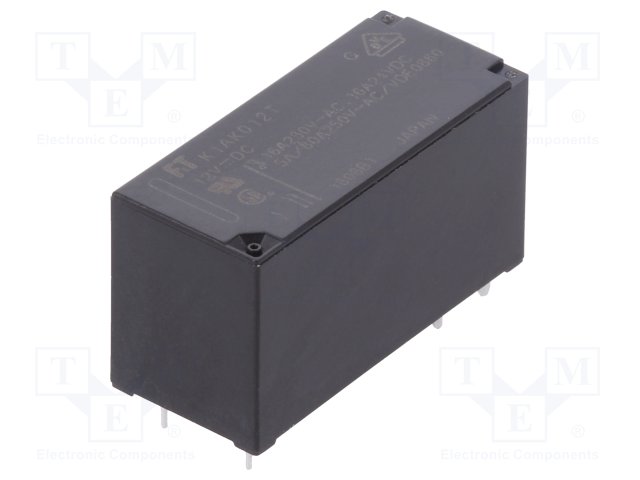

Relay electr. 12VDC 16A 6pin
€3,75
Out of stock
– Manufacturer: FUJITSU-TAKAMISAWA
– Type of relay: electromagnetic
– Contacts configuration: SPST-NO
– Rated coil voltage: 12V DC
– AC contacts rating @R
at resistance load: 16A / 250VAC
– DC contacts rating @R
at resistance load: 16A / 24VDC
– Contact current max.: 16A
– Switched voltage: max 440V AC, max 300V DC
– Relay variant: miniature
– Mounting: PCB
– Coil resistance: 360Ω
– Coil voltage min.: 8.4V DC
– Operate time: 15ms
– Body dimensions: 29 x 12.7 x 15.7mm
– Release time: 5ms
– Coil power consumption: 400mW
– Operating temperature: -40…85°C
– Relay series: FTR-K1
– Contact resistance: 100mΩ
– Contact material: AgSnO2
– Terminal pitch: 5mm
Additional information
– Gross weight: 0.01 kg
