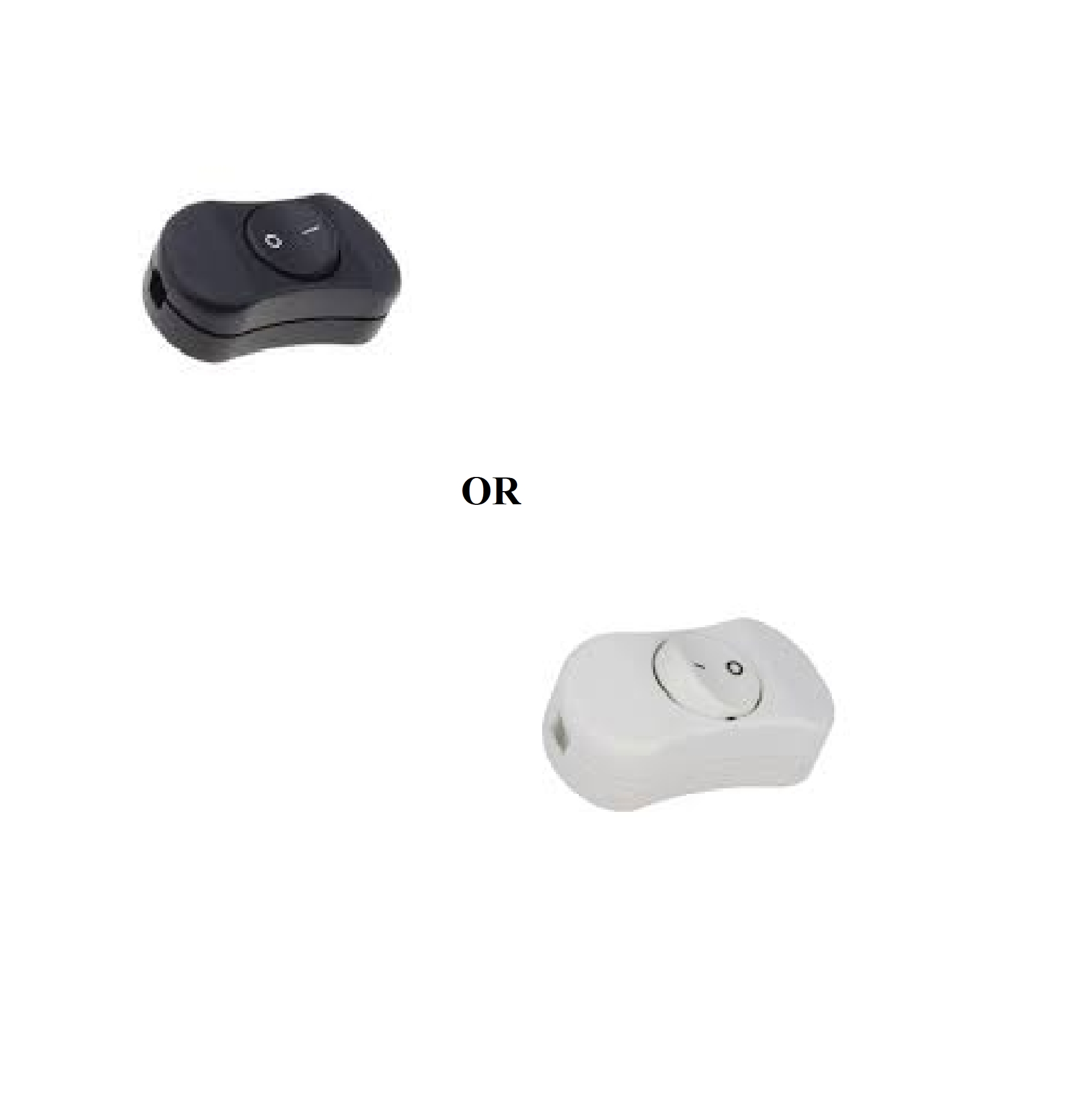

ROCKER 2POSITION 3A/250V ON-OFF WHITE OR BLACK
€4,00
In stock
– Manufacturer: SCI
– Switch type: ROCKER
– Stable positions number: 2-position
– Contacts configuration: SPST
– Switching method: OFF-ON
– AC contacts rating
at resistance load: 3 A / 250 VAC
– Key button colour: white or black
– Max. contact resistance: 50mΩ
– Body colour: white or black
– Flammability rating: UL94V-2
– Operating temperature: -25…70°C
– Leads: screwless terminals
– Number of positions: 2
– Button marking: 0-I
– Body dimensions: 60 x 30 x 19mm
– Test voltage: 1.5kV
