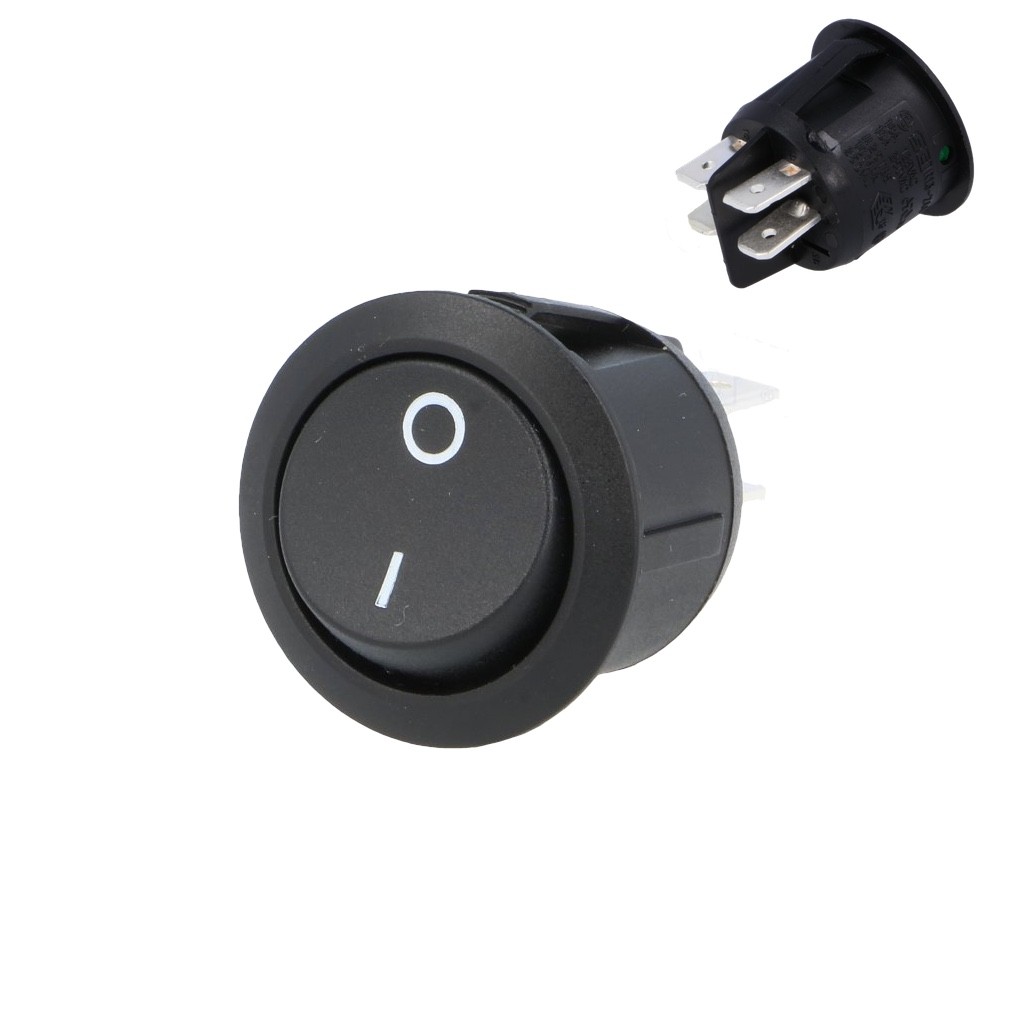

ROCKER SW 10A /250VAC DPST 2 POS ON-OFF
€3,00
Only 2 left in stock
– Manufacturer: SCI
– Type of switch: ROCKER
– Contacts configuration: DPST
– Number of positions: 2
– Switching method
the position in bracket indicates momentary position.: ON-OFF
– AC contacts rating @R
at resistive load: 10A / 250V AC
– Key button colour: black
– Illumination: none
– Max. contact resistance: 50mΩ
– Body colour: black
– Body material: polyamide
– Flammability rating: UL94V-2
– Operating temperature: -20…85°C
– Leads: 4,8×0,8mm connectors
– Panel thickness: max. 3mm
– Mounting hole diameter: Ø20.2mm
– Button marking: O-I
– Shape: round
– Related items: R13-112-12
– Manufacturer series: R13-244-AC
– Stable positions number: 2
