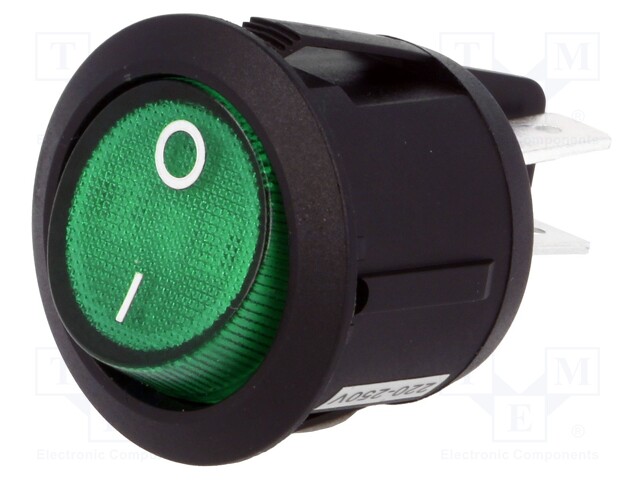

ROCKER SWITCH 2POS OFF-ON 10A/250VAC GREEN
€4,00
In stock
– Manufacturer SCI
– Type of switch ROCKER
– Contacts configuration DPST
– Number of positions 2
– Switching method OFF-ON
– AC contacts rating @R 10A / 250V AC
– Key button colour green
– Illumination neon lamp 230V
– Max. contact resistance: 50mΩ
– Body colour black
– Body material polyamide
– Flammability rating UL94V-2
– Operating temperature -20…85°C
– Leads 4,8×0,8mm connectors
– Panel thickness max. 3mm
– Mounting hole diameter Ø20.2mm
– Button marking O-I
– Backlight colour green
– Shape round
– Related items R13-112-12
– Manufacturer series R13-244-AC
– Stable positions number 2
Additional information
– Gross weight: 3.19 g
