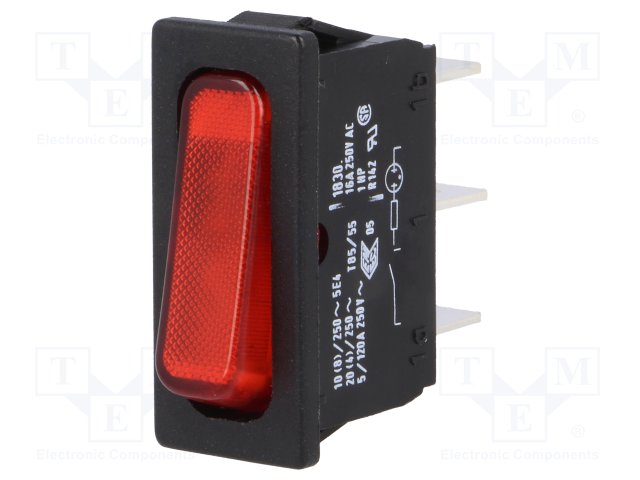

Rocker switch on/off 20A/250V RED

ROCKER SPST Positions:2 OFF-ON 20A/250VAC red IP40 100mΩ

-Manufacturer Marquardt
-Type of switch ROCKER
-Contacts configuration SPST
-Number of positions 2
-Stable positions number 2 position
-Switching method
item in brackets is instantaneous OFF-ON
-AC contacts rating @R
at resistance load 20A / 250VAC
-AC contacts rating @L
at inductive load 4A / 250VAC
-Key button colour red
-IP rating IP40
-Illumination filament lamp 230V
-Max. contact resistance: 100mΩ
-Body colour black
-Operating temperature -20...85°C
-Leads 6,3x0,8mm connectors
-Panel thickness max 3mm
-Mounting hole diameter 30.6 x 11mm
-Button marking blank
-Backlight colour red
-Shape rectangular
-Manufacturer series 1830
-Button shape rectangular
-Body dimensions 31.5 x 14 x 16.2mm
-Contact material silver

Additional information
-Gross weight: 6.8 g
