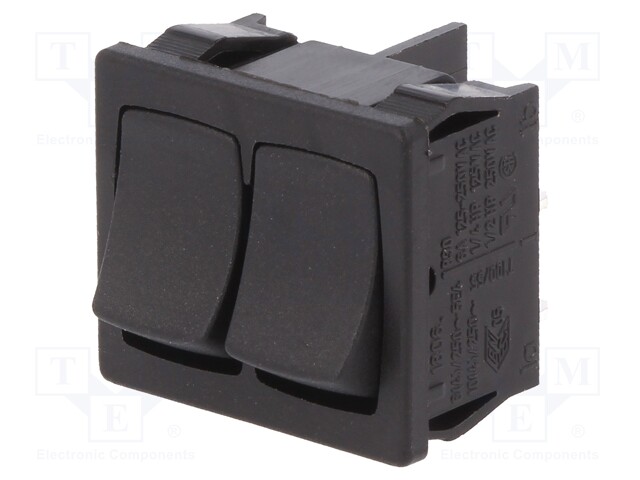

ROCKET SWITCH 2 POS OFF-ON 10A /250VAC
€8,30
In stock
– Manufacturer: Marquardt
– Type of switch: ROCKER
– Contacts configuration: SPST-NO x2
– Number of positions: 2
– Switching method : OFF-ON
– AC contacts rating @R: 10A / 250V AC
-AC contacts rating @L: 4A / 250V AC
– Key button colour: black
– IP rating: IP40
– Illumination: none
– Max. contact resistance: 100mΩ
– Body colour: black
– Operating temperature: -20…100°C
– Leads: 4,8×0,8mm connectors
– Panel thickness: max. 3mm
– Mounting hole diameter: 19.8×21.9mm
– Button marking: blank
– Shape: rectangular
– Manufacturer series: 1806
– Button shape: rectangular
– Body dimensions: 21x24x13.7mm
– Contact plating: silver plated
– Stable positions number: 2
Additional information
– Gross weight: 6.213 g
