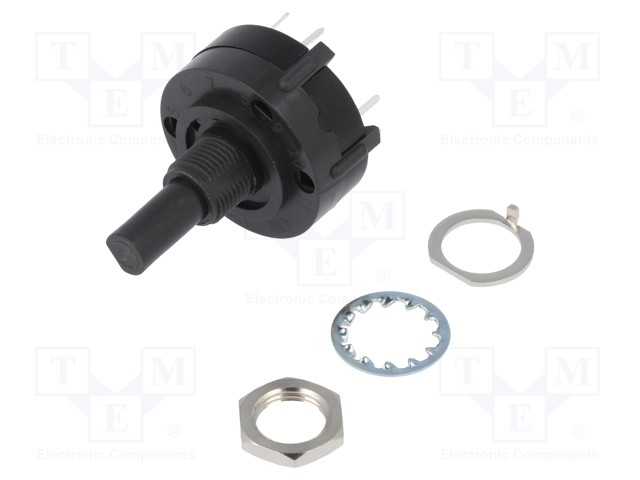

Rotary switch 8 pon 2.5A/125VAC 0.35A/125VDC
€12,60
Out of stock
– Manufacturer: CK
– Type of switch: rotary
– Number of positions: 8
– AC contacts rating @R
at resistive load: 2.5A / 125V AC
– DC contacts rating @R
at resistive load: 0.35A / 125V DC
– Poles number: 1
– Operating temperature: -30…85°C
– Leads: for PCB
– Max. contact resistance: 20mΩ
– Min. insulation resistance: 10GΩ
– Body dimensions: Ø26.2mm
– Electrical life: 15000 cycles
– Button height
measured from PCB: 32.52mm
– Stable positions number: 8
Additional information
– Gross weight: 15 g
