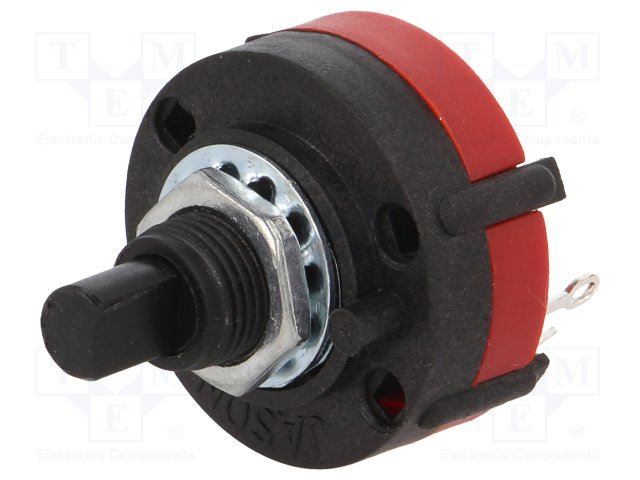

Rotary switch 8 Positions 0.3A/125VAC
€3,00
Out of stock
– Manufacturer: NINIGI
– Type of switch: rotary
– Number of positions: 8
– Stable positions number: 8-position
– AC contacts rating @R
at resistance load: 0.3A / 125VAC
– Poles number: 1
– Indexed positions: 30°
– Operating temperature: -20…70°C
– Leads: for soldering
– Switching method
item in brackets is instantaneous: BBM non-shorting
– Contact material: brass
– Max. contact resistance: 30mΩ
– Mechanical durability: 6000cycles
– Min. insulation resistance: 100MΩ
– Shaft surface: smooth
– Shaft diameter: 6mm
– Shaft length: 15mm
– Fastening thread: 3/8-32NEF
– Switching torque: 4.9Ncm
Additional information
– Gross weight: 9.43 g
- Manufacturer: NINIGI
- Type of switch: rotary
- Number of positions: 8
- Stable positions number: 8-position
- AC contacts rating @R
at resistance load: 0.3A / 125VAC
- Poles number: 1
- Indexed positions: 30°
- Operating temperature: -20...70°C
- Leads: for soldering
- Switching method
item in brackets is instantaneous: BBM non-shorting
- Contact material: brass
- Max. contact resistance: 30mΩ
- Mechanical durability: 6000cycles
- Min. insulation resistance: 100MΩ
- Shaft surface: smooth
- Shaft diameter: 6mm
- Shaft length: 15mm
- Fastening thread: 3/8-32NEF
- Switching torque: 4.9Ncm
Additional information
- Gross weight: 9.43 g
