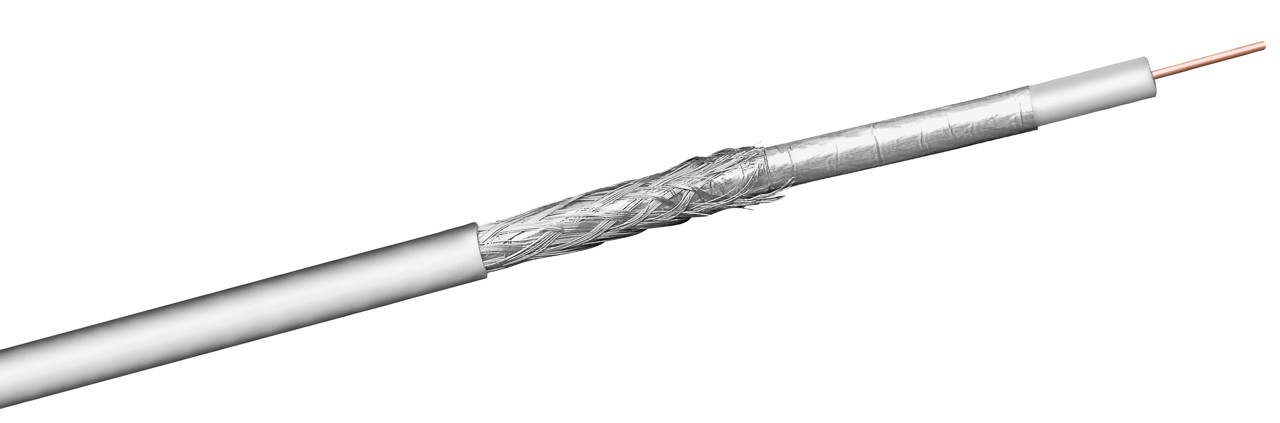

SAT Coaxial Cable Double Shielded CCS 100dB 100m

Satellite cable tested and classified as Class A according to EN 50117
Digitally compatible with HDTV installed via DVB-S/S2, DVB-T/T2, DVB-C/C2
Double-shielded TV cable for interference-free transmission
Metre scaling is indicated on the antenna cable
TV aerial cable meets the CPR Construction Products Regulation, therefore corresponding to the Eca fire protection class.
For connecting or extending e. g. cable TV or radio systems

– Meter scaling: yes
– Dielectric diameter: 4.6
– Cable length: 100 m
– Cable type: coaxial cable
– Inner conductor material: CCS
– Fire class CPR: Eca
inner conductor, core diameter: 1.02 mm
– Shielding efficiency: 100 dB
– Cable sheath diameter approx.: 6.9 mm
– Number of shieldings: 2 x
– Type 1, shielding: foil aluminium
– Type 2, shielding: braid aluminium 64x
– Impedance: 75 Ω
– Outer sheath material: PVC
– Color: white
