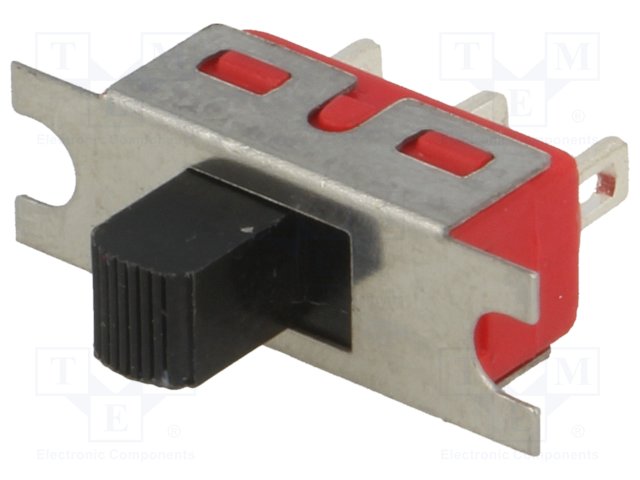

SIDE SWITCH ON-ON 2A/250VAC 5A/28VDC
€1,90
Out of stock
– Type of switch: slide
– Number of positions: 2
– Stable positions number: 2-position
– Contacts configuration: SPDT
– AC contacts rating @R
at resistance load: 2A / 250VAC
– DC contacts rating @R
at resistance load: 5A / 28VDC
– Switching method
item in brackets is instantaneous: ON-ON
– Number of terminals: 3
– Leads: for soldering
– Mounting: screw type
– Body dimensions: 19.56 x 6.1 x 6.35mm
– Operating temperature: -30…85°C
– Knob height: 5.08mm
– Terminal pitch: 4.7mm
– Min. insulation resistance: 1000MΩ
– Mechanical durability: 30000cycles
– Switches features: with mounting tabs
Additional information
– Gross weight: 1.5 g
