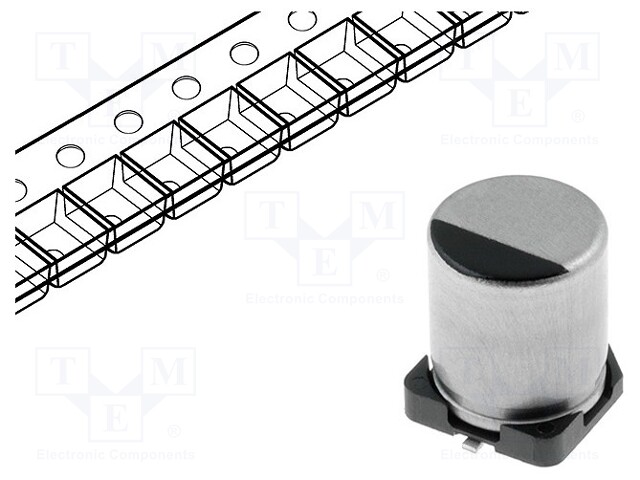

SMD 220MF 16VDC LOW IMPEDANCE X2P
€2,80
Out of stock
– Manufacturer: PANASONIC
– Type of capacitor: electrolytic
– Kind of capacitor: low impedance
– Mounting: SMD
– Capacitance: 220µF
– Operating voltage: 16V DC
-Body dimensions: Ø8×6.2mm
– Tolerance: ±20
– Service life: 2000h
– Impedance: 260mΩ
– Operating temperature: -55…105°C
– Capacitors series: FK
– Conform to the norm: AEC-Q200
– Operating current: 300mA
– Case: E
Additional information
Gross weight: 0.696 g
