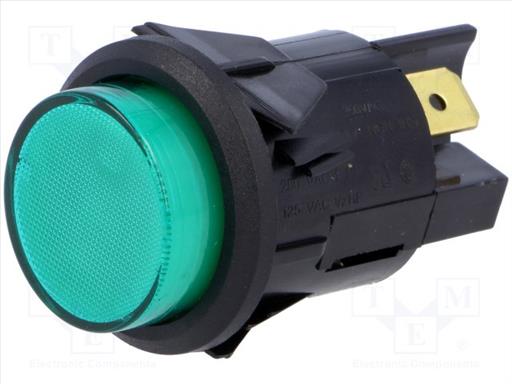

SWITCH PUSH BUTTON 2P SPST ON-OFF
€3,15
Only 1 left in stock
Manufacturer: SCI
Switch type: push-button
Number of all positions: 2
Stable positions number: 2-position
Contacts configuration : SPST-NO
AC contacts rating @R
at resistance load: 1.5 A / 250 VAC
Actuator colour: red
Illumination: LED 12V DC
Backlight colour: red
Leads: for soldering
Switching method: OFF-ON
Operating temperature: -25…70°C
Mounting: on panel
Mounting hole diameter: Ø16mm
Button shape: round, prominent
Max. contact resistance: 50mΩ
Body dimensions: Ø17.5 x 18mm
Panel thickness: max 7mm
Body material: polyamide
Flammability rating: UL94HB
AC test voltage: 1.5kV
Terminals plating: silver plated
