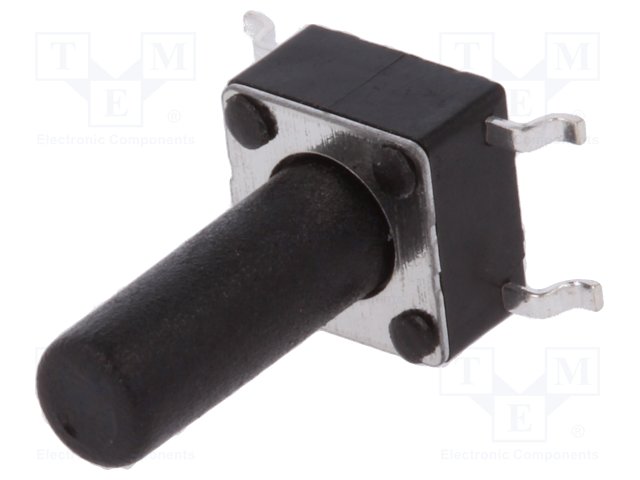

TACT MICROSWITCH 0.05A 12VDC POSITIONS 2 X2PCS

Microswitch TACT SPST-NO Positions:2 0.05A/12VDC SMT none

-Manufacturer SCHURTER
-Type of switch microswitch TACT
-Contacts configuration SPST-NO
-Number of all positions 2
-Stable positions number 1-position
-DC contacts rating @R
at resistance load 0.05 A / 12 VDC
-Mounting SMT
-Illumination none
-Operating Force 1.6N
-Body dimensions 6 x 6mm
-Button height
measured from PCB 12.5mm
-Switching method
item in brackets is instantaneous OFF-ON
-Button shape round
-Terminal pitch 4.5x10mm
-Operating temperature -20...70°C
-Actuator colour black
-Leads for PCB
-Max. contact resistance: 100mΩ
-Manufacturer series LSH
-Mechanical durability 100000cycles
-Key stroke 0.25mm
-Kind of package bulk
-IP rating IP40

Additional information
-Gross weight: 0.34 g
