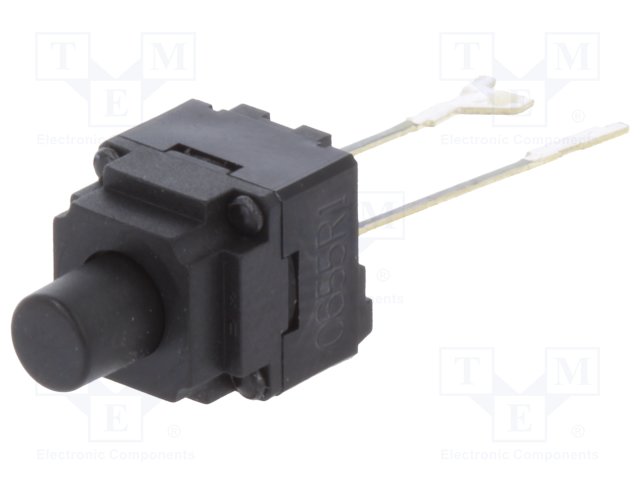

TACT SWITCH 0.05A/12VDC

Microswitch TACT SPST-NO Positions:2 0.05A/12VDC THT none

-Manufacturer OMRON
-Type of switch microswitch TACT
-Contacts configuration SPST-NO
-Number of positions 2
-Stable positions number 1-position
-DC contacts rating @R
at resistance load 0.05A / 12VDC
-Mounting THT
-Illumination none
-Operating Force 1.96N
-Body dimensions 8 x 8mm
-Button height
measured from PCB 13mm
-Switching method
item in brackets is instantaneous OFF-ON
-Button shape round
-Terminal pitch 5mm
-Operating temperature -25...85°C
-Actuator colour black
-Leads for PCB, straight
-Max. contact resistance: 100mΩ
-Min. insulation resistance 100MΩ
-Manufacturer series B3WN
-Mechanical durability 100000cycles
-Key stroke 0.3mm
-IP rating IP67

Additional information
-Gross weight: 0.77 g
