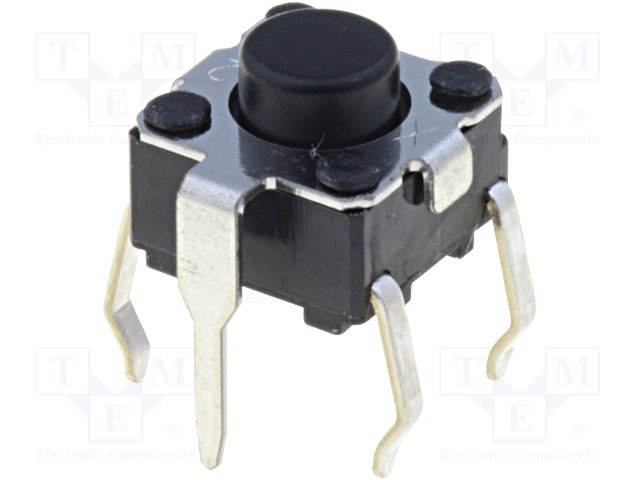

TACT SWITCH X2PCS
€1,20
Out of stock
Microswitch TACT SPST-NO Positions:2 0.05A/24VDC THT none
-Manufacturer OMRON
-Type of switch microswitch TACT
-Contacts configuration SPST-NO
-Number of positions 2
-Stable positions number 1-position
-DC contacts rating @R
at resistance load 0.05A / 24VDC
-Mounting THT
-Illumination none
-Operating Force 0.98N
-Body dimensions 6 x 6mm
-Button height
measured from PCB 5mm
-Switching method
item in brackets is instantaneous OFF-ON
-Button shape round
-Terminal pitch 4.5×6.5mm
-Operating temperature -25…70°C
-Actuator colour black
-Leads for PCB, straight
-Max. contact resistance: 100mΩ
-Min. insulation resistance 100MΩ
-Manufacturer series B3F
-Mechanical durability 1000000cycles
-Contact material phosphor bronze
-Contact plating silver plated
-Key stroke 0.25mm
-Switches features with ground terminal
Additional information
-Gross weight: 1 g
