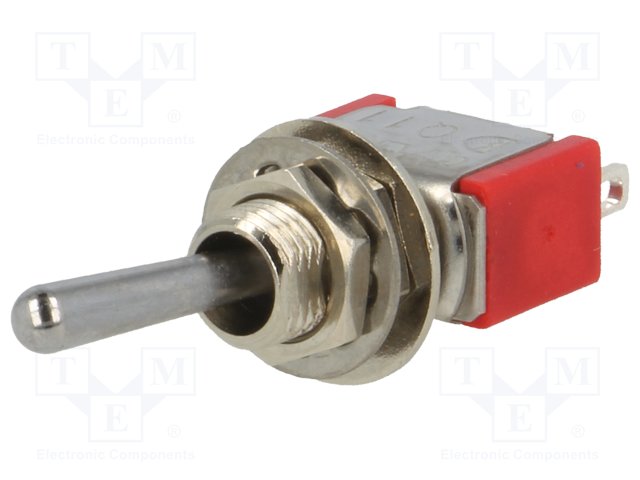

TOGGLE SWITCH 2A 250V -5A/28VDC ON-ON
€2,75
In stock
Switch: toggle Positions:2 SPDT ON-ON 2A/250VAC 5A/28VDC
Type of switch toggle
Number of all positions 2
Stable positions number 2-position
Contacts configuration SPDT
Switching method
item in brackets is instantaneous ON-ON
AC contacts rating @R
at resistance load 2 A / 250 VAC
DC contacts rating @R
at resistance load 5 A / 28 VDC
Leads for soldering
Operating temperature -35…80°C
Kind of toggle round
Mounting hole diameter Ø6.35mm
Knob height 10.41mm
Body dimensions 12.7 x 6.86 x 8.89mm
Contact plating silver plated
Mechanical durability 40000cycles Additional information
Gross weight: 4.8 g
