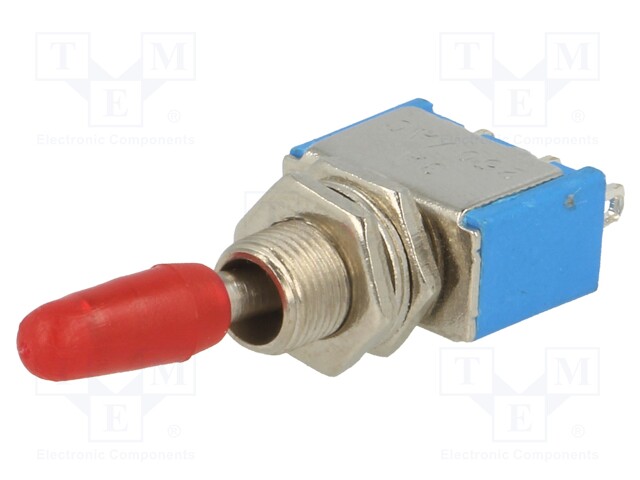

TOGGLE SWITCH 2POS ON-0N 3A/250VAC
€1,40
In stock
– Type of switch: toggle
– Number of positions: 2
– Contacts configuration: SPDT
– Switching method : ON-ON
– AC contacts rating @R: 3A / 250V AC
– Leads: for soldering
– Operating temperature: -55…85°C
– Kind of toggle: with plastic protector
– Mounting hole diameter: Ø6mm
– Knob height: 11mm
– Max. contact resistance: 20mΩ
– Body dimensions: 12.5×6.5×9.5mm
– Electrical life: 20000 cycles
– Actuator material: metal
– Stable positions number: 2
Additional information
– Gross weight: 4.35 g
- Type of switch: toggle
- Number of positions: 2
- Contacts configuration: SPDT
- Switching method : ON-ON
- AC contacts rating @R: 3A / 250V AC
- Leads: for soldering
- Operating temperature: -55...85°C
- Kind of toggle: with plastic protector
- Mounting hole diameter: Ø6mm
- Knob height: 11mm
- Max. contact resistance: 20mΩ
- Body dimensions: 12.5x6.5x9.5mm
- Electrical life: 20000 cycles
- Actuator material: metal
- Stable positions number: 2
Additional information
- Gross weight: 4.35 g
