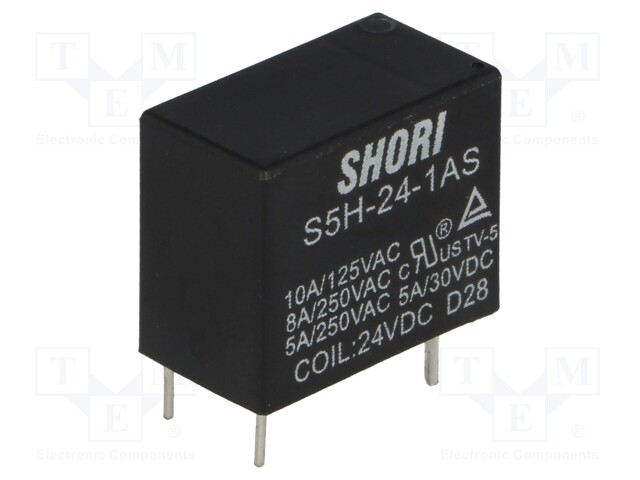

Ucoil 24VDC 5A 250VAC 5A/30A electr. relay
€2,60
Out of stock
– Manufacturer: SHORI ELECTRIC
– Type of relay: electromagnetic
– Contacts configuration: SPST-NO
– Rated coil voltage: 24V DC
– AC contacts rating @R : 5A / 250V AC
– DC contacts rating @R: 5A / 30V DC
– Contact current max.: 8A
– Relay variant: miniature
– Mounting: THT
– Coil resistance: 1.28kΩ
– Operate time: 10ms
– Body dimensions: 18.8×15.6×10.4mm
– Release time: 5ms
– Operating temperature: -40…70°C
– Relay series: S5H
– Contact resistance: 100mΩ
– Terminal pitch: 1.5mm
– Coil current: 18.8mA
Additional information
– Gross weight: 5.51 g
- Manufacturer: SHORI ELECTRIC
- Type of relay: electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 24V DC
- AC contacts rating @R : 5A / 250V AC
- DC contacts rating @R: 5A / 30V DC
- Contact current max.: 8A
- Relay variant: miniature
- Mounting: THT
- Coil resistance: 1.28kΩ
- Operate time: 10ms
- Body dimensions: 18.8x15.6x10.4mm
- Release time: 5ms
- Operating temperature: -40...70°C
- Relay series: S5H
- Contact resistance: 100mΩ
- Terminal pitch: 1.5mm
- Coil current: 18.8mA
Additional information
- Gross weight: 5.51 g
