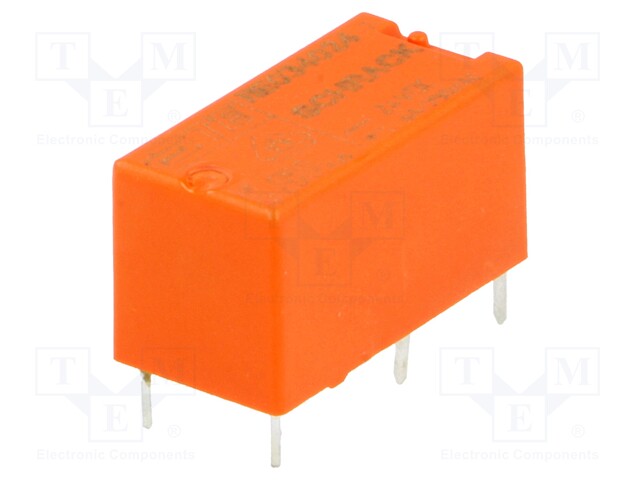

Ucoil 24VDC RELAY 6A/250VAC ELECTROMAGNETIC
€2,90
In stock
– Manufacturer: TE Connectivity
– Type of relay: electromagnetic
– Contacts configuration : SPST-NO
– Rated coil voltage: 24V DC
– AC contacts rating @R: 6A / 250V AC
– DC contacts rating @R: 6A / 30V DC
– Contact current max.: 6A
– Switched voltage: max. 300V DC,
max. 400V AC
– Relay variant: miniature
– Mounting: PCB
– Coil resistance: 2.88kΩ
– Coil voltage min.: 16.8V DC
– Operate time: 10ms
– Body dimensions: 20×10.6x10mm
– Release time: 5ms
– Coil power consumption: 200mW
– IP rating: IP67
– Mechanical durability: 300000000 cycles
– Operating temperature: -40…70°C
– Weight: 5g
– Relay series: RE
– Contact material: AgNi 90/10
– Terminal pitch: 7.62mm
– Coil current: 8.3mA
Additional information
– Gross weight: 4.957 g
