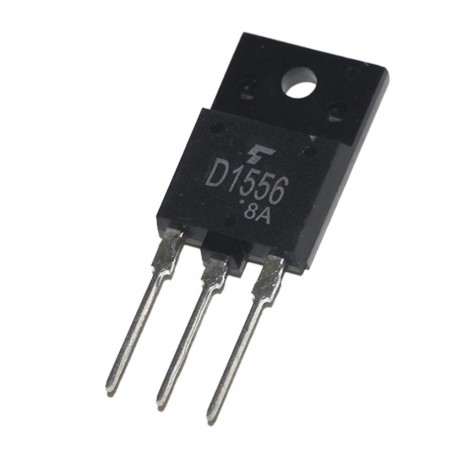

2SD1556 TRANSISTOR

– Polarity: NPN
– Maximum Collector Power Dissipation Pc: 50 W
– Maximum Collector-Base Voltage |Vcb|: 1500 V
– Maximum Collector-Emitter Voltage |Vce|: 600 V
– Maximum Emitter-Base Voltage |Veb|: 5 V
– Maximum Collector Current |Ic max|: 6 A
– Max. Operating Junction Temperature Tj: 150 °C
– Transition Frequency ft: 3 MHz
– Collector Capacitance Cc: 165 pF
– Forward Current Transfer Ratio hFE, MIN: 8
– Noise Figure, dB: –
– Package: ISO218
