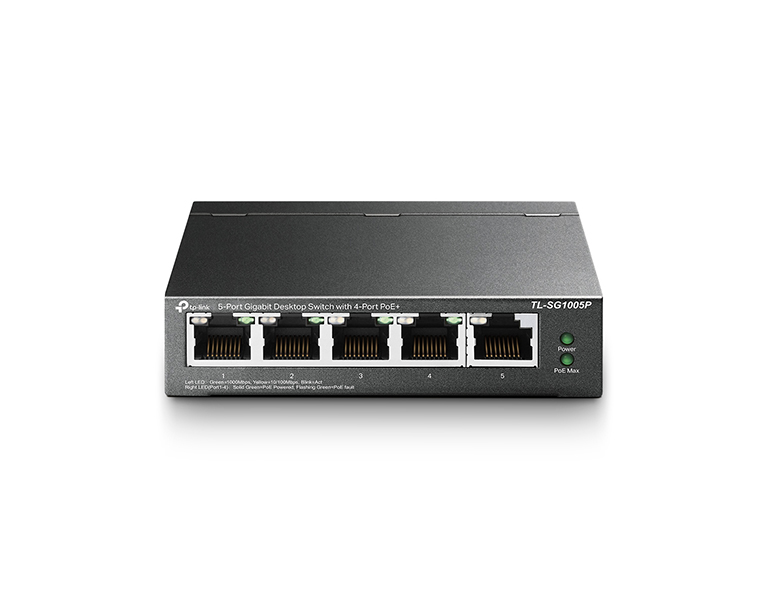

5-PORT GIGABIT DESKTOP POE+SWITCH 4PORT 65W

– Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
– Interface 5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports Port 1 to Port 4
AUTO Negotiation/AUTO MDI/MDIX
– Network Media 10BASE-T: UTP category 3, 4, 5 cable maximum 100 m
EIA/TIA-568 100Ω STP maximum 100 m
100BASE-TX: UTP category 5, 5e cable maximum 100 m
EIA/TIA-568 100Ω STP maximum 100 m
1000BASE-T: UTP category 5, 5e, 6 or above cable maximum 100 m
EIA/TIA-568 100Ω STP maximum 100 m
– Max Power Consumption 4.29 W 220 V/50 Hz. no PD connected
74.24 W 220 V/50 Hz. with 56 W PD connected
– Max Heat Dissipation 14.63 BTU/h no PD connected
253.16 BTU/h with 65 W PD connected
– PoE Ports RJ45 Standard: 802.3 af compliant
PoE Ports: Port1 – Port4
Power Supply: 65W
– External Power Supply External Power Adapter Output: 53.5 VDC / 1.31 A
– Switch Capacity 10Gbps
– Mac Address Table 2K
– DimensionsWxDxH 99.8 x 98 x 25 mm
– Fanless Yes
– LED Power, Link/Act, PoE Status, PoE Max

SOFTWARE FEATURES
– Transmission Method Store-And-Forward

OTHERS
– Certification FCC, CE, RoHS
– Package Contents TL-SG1005P
Power Adapter
Installation Guide
– Environment Operating Temperature: 0°C~40°C 32°F~104°F
Storage Temperature: -40°C~70°C -40°F~158°F
Operating Humidity: 10~90 non-condensing
Storage Humidity: 5~90 non-condensing
