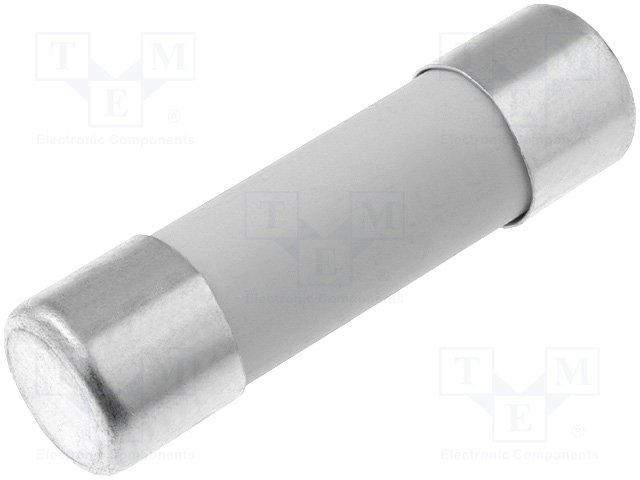

8A FUSE SLOW BLOW CERAMIC 5X20MM

– Manufacturer: ESKA
– Type of fuse: fuse
– Fuse characteristics: time-lag
– Kind of fuse: ceramic, miniature
– Breaking capacity: 1.5kA
– Current rating: 8A
– Rated voltage: 250V AC
– Fuse size: 5x20mm
– Breaking characteristics: 10 In: max 150 ms, 10 In: min 20 ms, 2,1 In: max 30 min., 2,75 In: max 80 s, 2,75 In: min 750 ms, 4 In: max 5 s, 4 In: min 150 ms
– Max voltage drop: 100mV
– Fuses features: Extinguishing agent
– Manufacturer series: 522.700

Additional information
– Gross weight: 1.235 g
